FEATURES
Alternative Two Detection Signal Processor
Latest Detector with Improved performance
Easy-to-operate Ergonomic Design

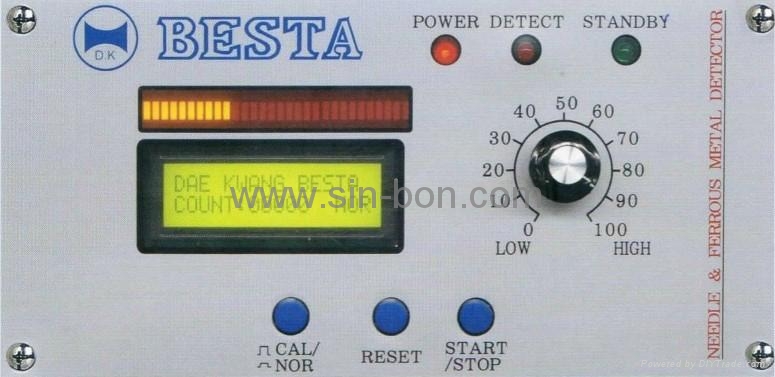

User-friendly wide LCD Control Panel
Automatic Products Return system
Digital Controlled Sensitivity Adjustment
Upgraded stability to Environmental Noise
Automated conveyor belt alignment system
Lock-up to secure optimum setting
APPLICATION
Used to detect broken needles in dress shirt, Casual shirt, men's wear, women's wear, jacket, underwear, socks, cap, shoes etc.
SPECIFICATION
|
Model No.
|
DK-600M.A.S
|
DK-600M.H.S
|
|
Sensitivity
|
FeΦ0.8mm
|
FeΦ1.2mm
|
|
Control of Sensitivity
|
0-100 Level
|
0-100 Level
|
|
Passing Width
|
630mm
|
630mm
|
|
Passing Height
|
100mm
|
150mm
|
|
Belt Speed
|
35-40m/min.
|
35-40m/min.
|
|
Conveyor Length
|
1500mm
|
1500mm
|
|
Alarm
|
Buzzer, Lamp, Belt Stop
|
Buzzer, Lamp, Belt Stop
|
|
Power Source
|
AC220V; 50Hz/60Hz; 2P
|
AC220V; 50Hz/60Hz; 2P
|
|
Power Consumption
|
90W/H
|
90W/H
|
|
Weight
|
275KG
|
285KG
|
