"BESTA" Needle Detector

  • "BESTA" Needle Detector
  • "BESTA" Needle Detector
  • "BESTA" Needle Detector
  • "BESTA" Needle Detector
  • "BESTA" Needle Detector
Model No.︰CBS series
Brand Name︰BESTA
Country of Origin︰Korea
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 14 Related Items
Prev34567Next

Product Description

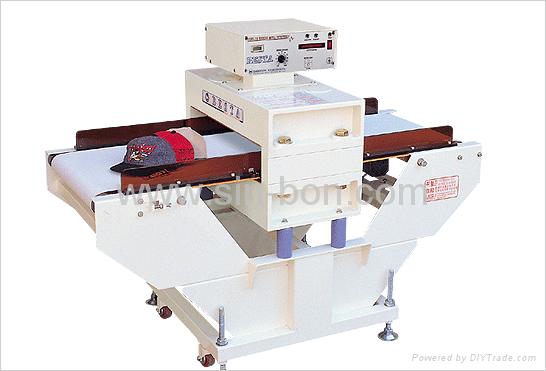

"BESTA" NEEDLE & FERROUS METAL DETECTOR
  • BESTA needle & ferrous metal detector is one of the leading products n world market with verified sensitivity, approved performance and reliable stability.
  • BESTA needle & ferrous metal detector were approved by GAP.
FEATURES:
  • BESTA detector minimize influence from outside electrical signals and vibrations
  • Simplified control panel for convenient control operation
  • The speed of belt is fast enough (45m/min.) to carry a plenty of orders
  • The system is designed not to react with nonmetal (nickel, brass, bronze and aluminum) parts such as Zippers, button or other accessories.
  • If they are any fault materials pass through, it will detect them and intervene the process
  • Metal Detection is available even poly bag or plain paper box has packed it up
  • A SPECIAL CPU has been installed in the inside of control for complete operation that can’t be achieved without more than 15 years of various experience and know-how
  • BESTA new control has been dramatically developed to use with irregular voltage level without automatic voltage regulator
APPLICATION:
  • Used to detect broken needles in dress shirt, Casual shirt, men's wear, women's wear, jacket, underwear, socks, cap, shoes etc.
SPECIFICATION:
Model
CBS-400
M.A.S
CBS-400
M.H.S
CBS-600
M.A.S
CBS-600
M.H.S
CBS-800
M.A.S
CBS-800
M.H.S
CBS-1600
M.A.S
CBS-1600
M.H.S
Detection
Ability
Fe-ball
¢1.0mm
Fe-ball
¢1.2mm
Fe-ball
¢1.0mm
Fe-ball
¢1.2mm
Fe-ball
¢1.0mm
Fe-ball
¢1.2mm
Fe-ball
¢1.0mm
Fe-ball
¢1.2mm
Control of
Detection
10 steps on the switch
Passing Width
450MM
450MM
630MM
630MM
850MM
850MM
1600MM
1600MM
Passing Height
100MM
150MM
100MM
150MM
100MM
150MM
100MM
150MM
Belt Speed
45m/min
Conveyor Length
1440MM
1440MM
1500MM
1500MM
2250MM
2250MM
2280MM
2280MM
Alarm
Buzzer, Lamp, Belt Stop
Power Source
2P; 220V; 50/60HZ
Power Consumption
90W/H
Weight
210kg
230kg
300kg
350kg
450kg
550kg
900kg
950kg

Product Image
